NK005A All in One 5Kw Inverter /15Kwh LifePo4 Battery Solar System Home Energy Storage System
- Model: NK01, NK02
- Battery type: LIFEPO4
- Brand Name: Golden Future
- Place of Origin: Guangdong, China
- Rated voltage: 25.6 V, 51.2 V
- Power: 5Kwh, 10kwh
- Rated Capacity: 100Ah, 200Ah
- Charging cut-off voltage: 29.2 V, 58.4 V
- Discharge cut-off voltage: 20.8 V,41.6 V
- Overview
- Parameter
- FAQ
- Recommended Products

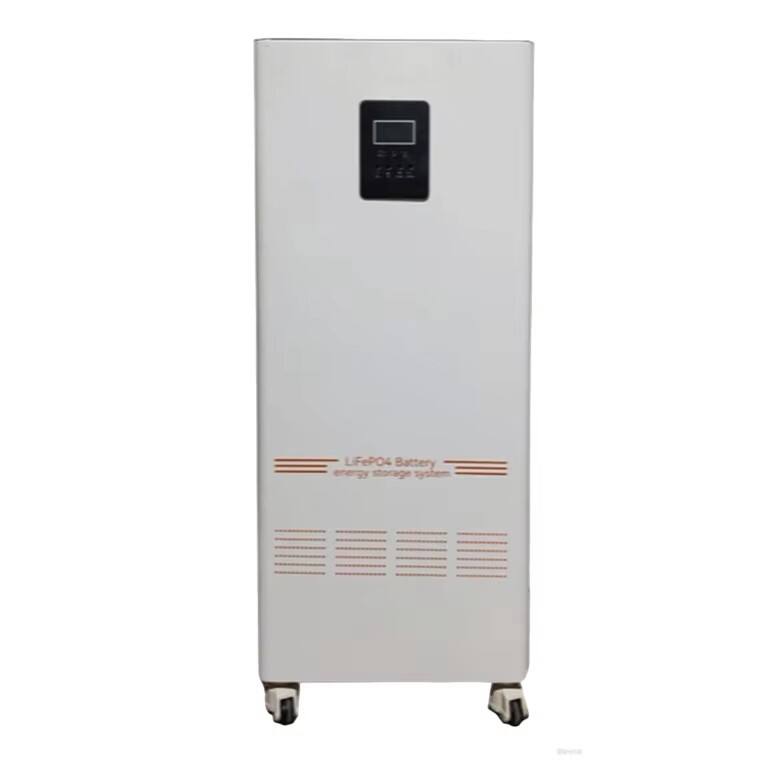

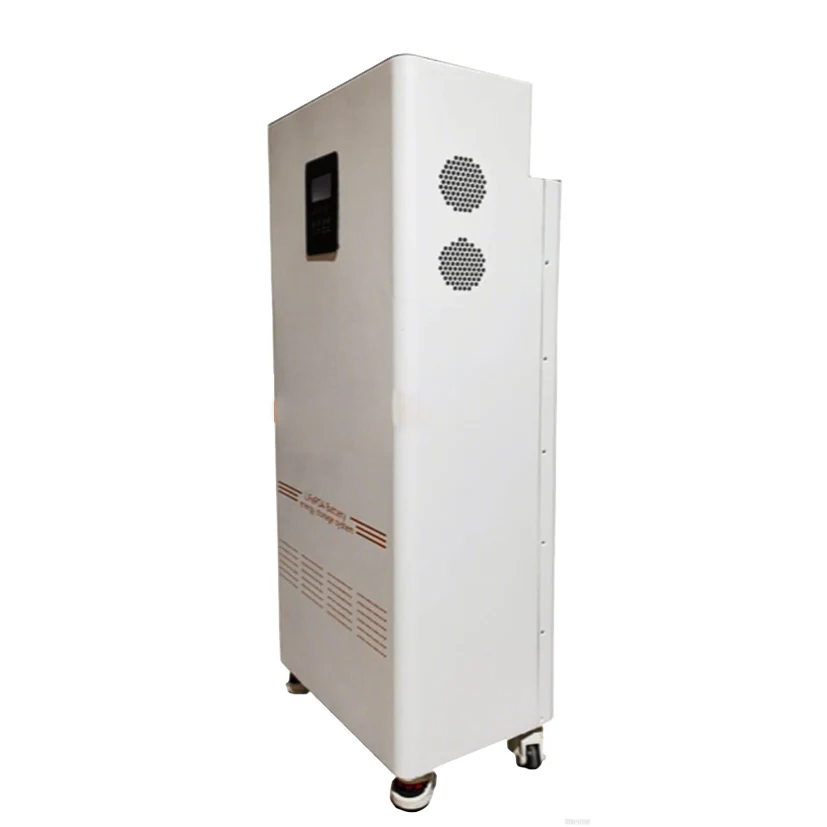

NK005A All in One 5Kw Inverter /15Kwh LifePo4 Battery Solar System Home Energy Storage System
■ Compatible with over 20 inverters. Multiple communication interfaces: RS485, RS232, CAN. Two models option for different requirements .
■ AC Coupled for both new and retrofitted installations.
■ Reliable Built-In BMS, Voltage, Current, Temp, and Health Management.
■ Simple buckle fixing minimizes the installation time and cost.
Products Parameter
|
Model Number
|
NK01
|
NK02
|
|
Battery type
|
LIFEPO4
|
LIFEPO4
|
|
Rated Capacity
|
100Ah
|
200Ah
|
|
Rated voltage
|
25.6 V
|
51.2 V
|
|
Power
|
5 Kwh
|
10 kwh
|
|
Charging cut-off voltage
|
29.2 V
|
58.4 V
|
|
Discharge cut-off voltage
|
20.8 V
|
41.6 V
|
|
Recharging current
|
100A
|
100A
|
|
Discharging current
|
150 A
|
150 A
|
|
Communication port
|
internal communication
|
|
|
AC Inverter
|
||
|
Load Power
|
3 KW
|
5KW
|
|
DC input
|
24 VDC
|
48 VDC
|
|
MPPT
|
60- 180Vdc，80A
|
60- 180Vdc，80A
|
|
Ac input
|
220Vac,50Hz
|
220Vac,50Hz
|
|
Ac output
|
220Vac,50Hz
|
220Vac,50Hz
|
|
Product dimensions
|
L814*W550*H320mm
|
L1016*W550*H320mm
|
|
Packing size
|
924*671*515mm
|
1126*671*515mm
|
|
Recharging working temperature
|
0°~45°C
|
|
|
Discharge working temperature
|
-22°~55°C
|
|
|
Net weight
|
90 kg
|
130kg
|
|
Gross Weight
|
110 kg
|
150 kg
|
Product Applications
Why Choose Us
Product Packaging
FAQ
Q: 1. What is the lead time?
A:Sample needs 7-10days, mass production needs 30days.
Q: 2. Do you have any MOQ limit ?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 20pcs.
Q: 3. How to proceed the order when customer order products ?
A:Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 4. How to make this payment ?
A: L/C, TT, Paypal, Western Union.
Q: 5. Do you offer guarantee for theproducts ?
A: Yes, we offer 10 years guarantee for the products.
Q: 6. Do you accept OEM/ODM ?
A: Yes, it's available .
