BH-10KWH Lifepo4 Mobile Power Supply Station for Home Energy Storage and Outdoor Activity with 5KW AC Power Output
- Battery Type: LiFePO4
- System Type: All in One
- Model Number: BH-10KWH
- Brand Name: Golden Future
- Place of Origin: Guangdong, China
- Dimension (L*W*H): 500*400*700mm
- Weight: 90kg
- Battery Capacity: 10000WH
- Application: Outdoor Activities, home energy storage, emergency power
- OEM/ODM: Accepatable
- Warranty: 10 Years
- Overview
- Paramenters
- FAQ
- Recommended Products
Product Details
7.5KWH AND 1OKWH LARGE CAPACITY

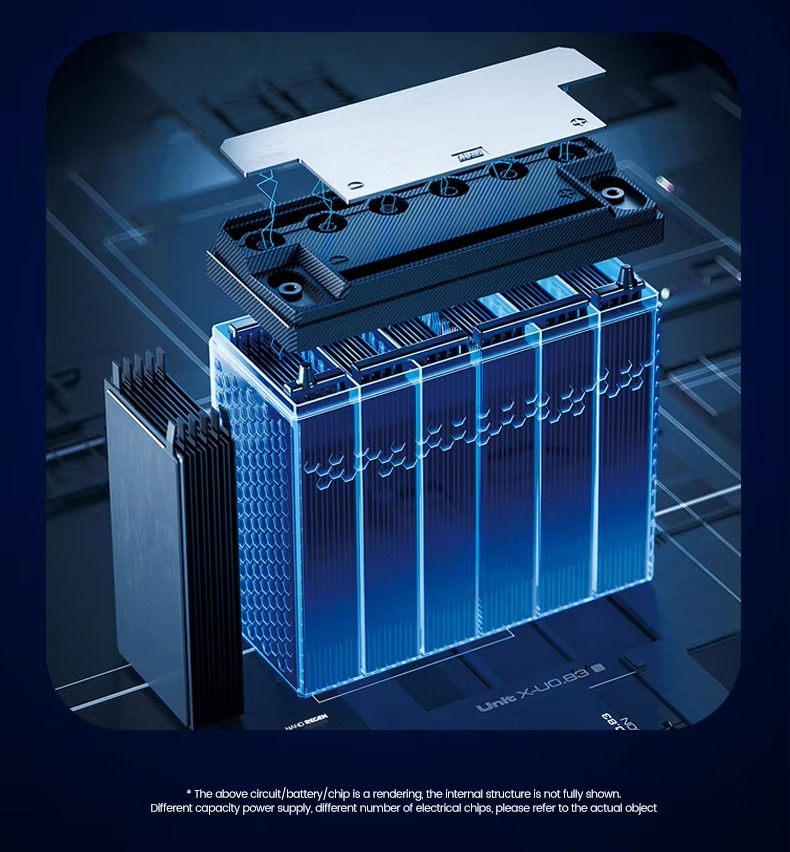

CAR GRADE LITHIUM
INTELLIGENT BATTERY MANAGEMENT SYSTEM
Battery management system as a core part of the product.

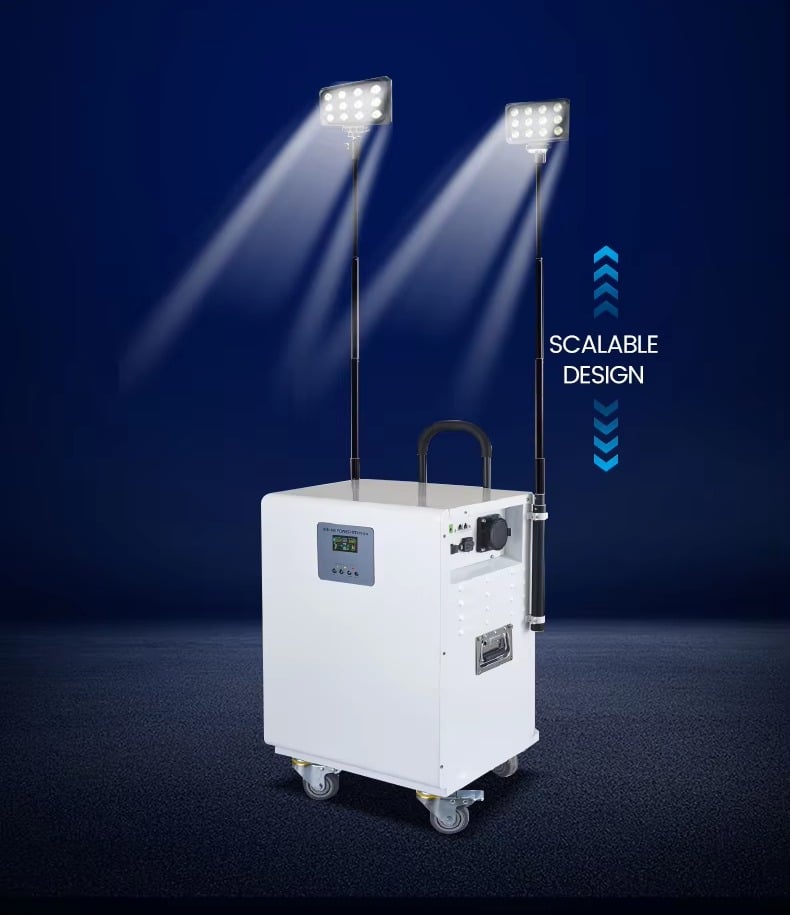

SCALABLE
OUTDOOR EMERGENCY LIGHT
Wide lighting range, outdoor assistant at night, dual-purpose LED lights for emergency lighting.

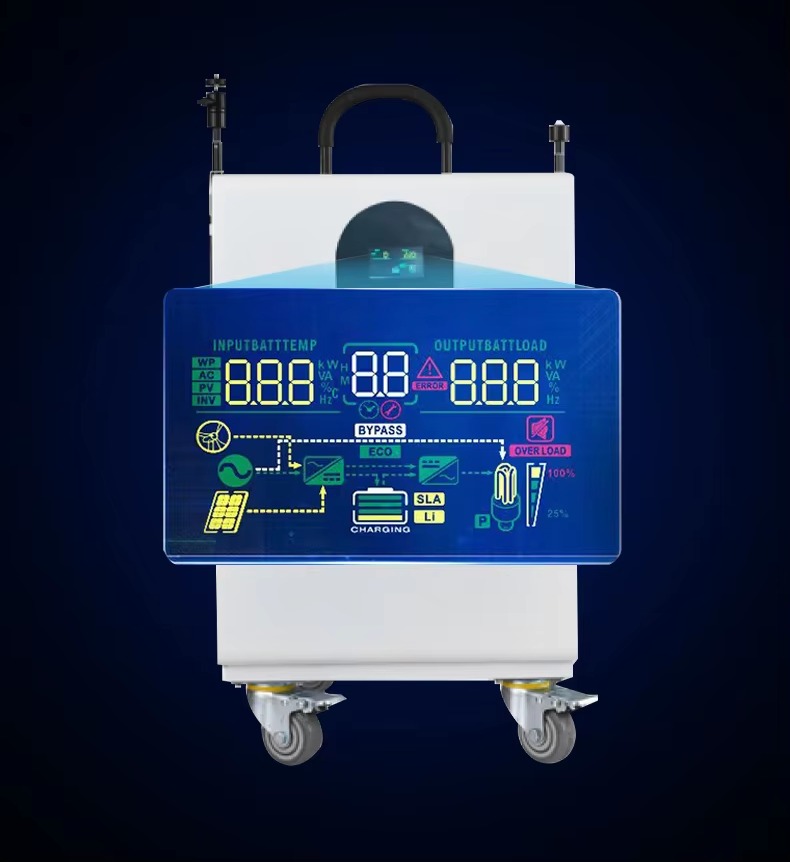

Color digital large screen
Data parameters / status prompts/ alarms are clear at a glance

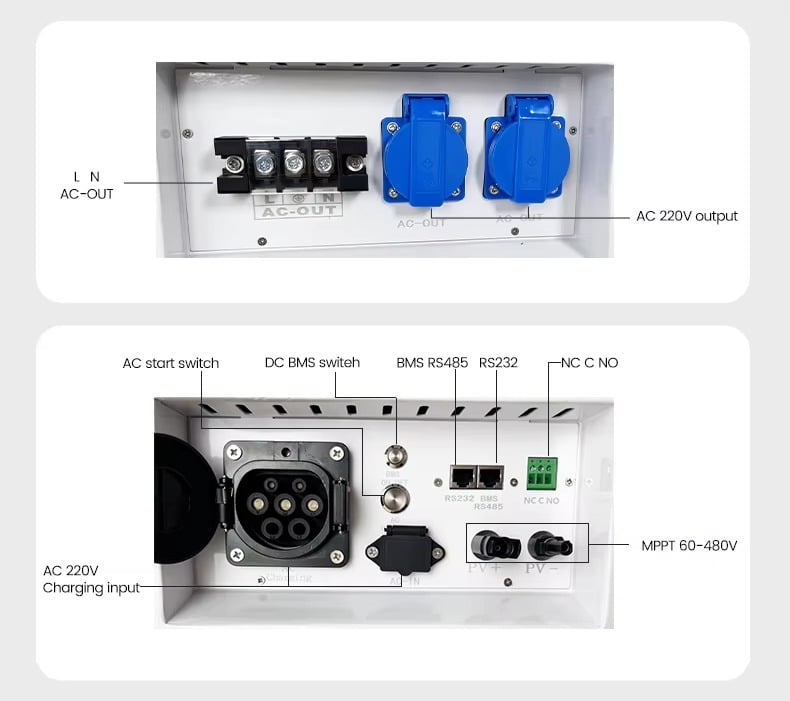

MULTI PORT DESIGN
Products Parameter
| Model | BH-7.5KWH | BH-10KWH | ||
| Input | power supply | L+N+PE | ||
| input voltage | 220/230/240VAC | |||
| voltage range | 154-264 VAC±3V (APL mode) 185-264 VAC±3V (UPS mode) | |||
| frequency | 50 Hz/60 Hz(automatic adaptation) | |||
| Output | power rating | 3000W | 5000W | |
| output voltage | 220/230/240VAC±5% | |||
| frequency | 50/60Hz±0.1% | |||
| Waveform | Pure sine wave | |||
| time | Computer (UPS mode) 10 ms, Home equipment (APL mode) 20 ms | |||
| peak power | 6000VA | 10000VA | ||
| overloadcapacity | Battery~ mode: 21s@105%~150% load 11s@150% 200% load 400 ms@> 200% load | |||
| Peak efficiency (Battery mode) |
>94% |
>94% |
||
| Battery |
battery voltage |
25.6 Vdc |
51.2 Vdc |
|
| battery capacity | 7.5 kwh | 10 kwh | ||
| BMS parameter |
150A |
100A |
||
| Charger | PVCharging mode |
MPPT |
MPPT | |
| PVEnterthe maximum value |
3000W |
5200W |
||
| MPPTscope |
60~480Vdc |
90~480Vdc |
||
| optimum voltage |
300~400V |
300~400V |
||
| PVInput voltage max |
480Vdc |
480Vdc |
||
| PVChargecurr entmaximum value |
100A |
100A |
||
| AC charging Current maximum |
60A |
60A |
||
| Currentmaximum |
100A |
100A |
||
| Show | Display content | Displays operating mode/load/input/output, etc. | ||
|
Connect |
RS232
|
Baud rate 2400 | ||
| port | Lithium battery BMS communication card, wireless card, dry contact, | |||
| Environment | temperature | 0~40℃ | ||
| humidity | 20%~95% (non-condensing) | |||
| storage temperature | -15~60℃ | |||
| height | Altitude not exceeding 1000 meters, derated if above 1000 meters, maximum 4000 meters, refer to IEC62040 | |||
| Noise | ≤50dB | |||
| size | 500*420*700MM | 500*420*700MM | ||
Why Choose Us
Product Packaging
FAQ
Q: 1. What is the lead time?
A:Sample needs 7-10days, mass production needs 30days.
Q: 2. Do you have any MOQ limit ?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 20pcs.
Q: 3. How to proceed the order when customer order products ?
A:Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 4. How to make this payment ?
A: L/C, TT, Paypal, Western Union.
Q: 5. Do you offer guarantee for theproducts ?
A: Yes, we offer 10 years guarantee for the products.
Q: 6. Do you accept OEM/ODM ?
A: Yes, it's available .
